Description

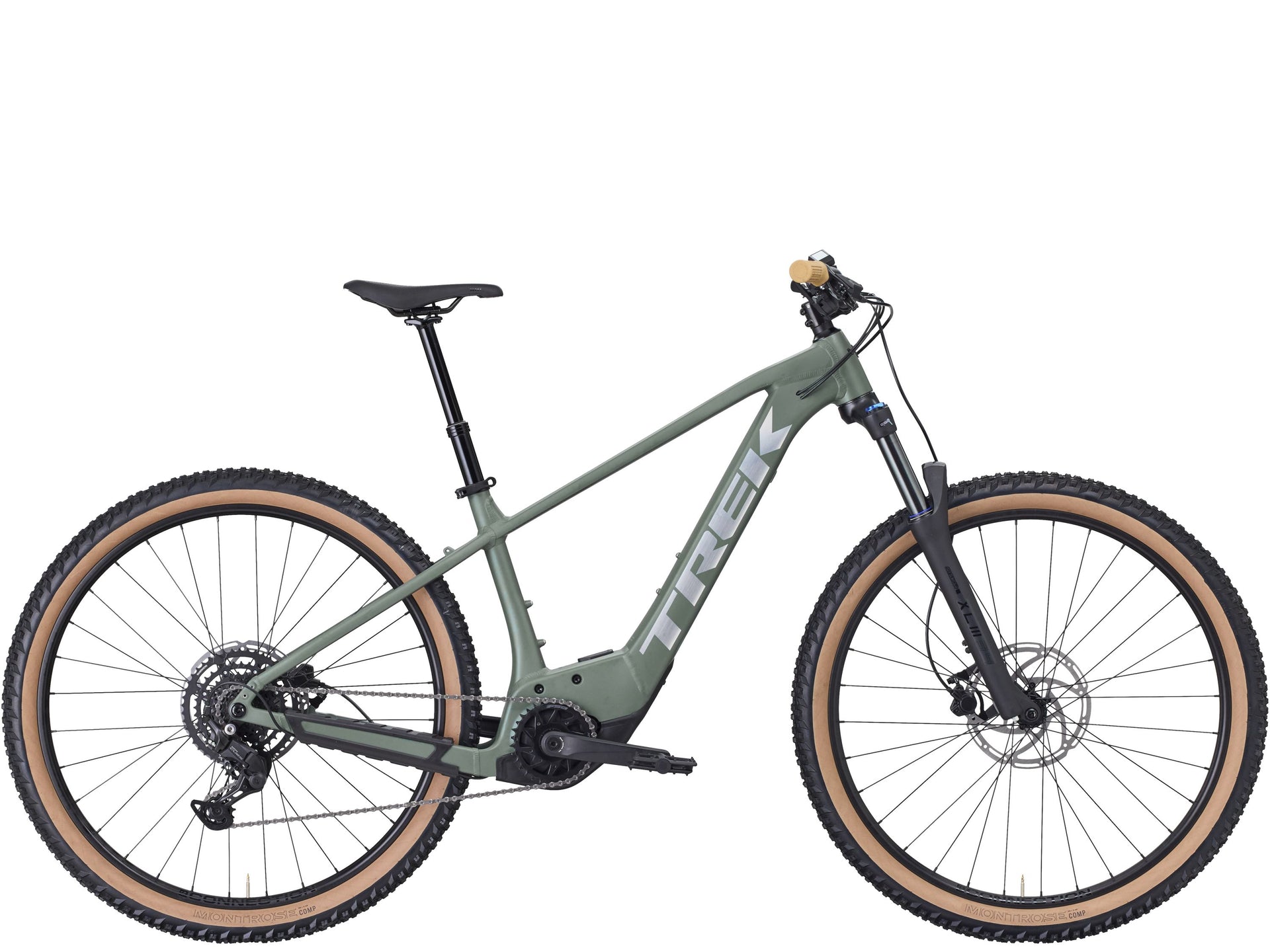

mountainbike 29 xl Marlin+ 6 US XL 29 Matte Keswick GreenMarlin+ 6 is an electric mountain bike thats ready to power up your trail rides without breaking the bank. Its equipped with the same fun and confident geometry as the non electric Marlin, with the added boost of Boschs Active Line Plus drive system. A 120mm suspension fork soaks up rocks, roots, and potholes on your ride, while 9 speed Shimano CUES is durable and reliable for wherever you roll. Its AUTO mode adaptive motor support recognizes speed
Marlin+ 6 is an electric mountain bike thats ready to power up your trail rides without breaking the bank. Its equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Boschs Active Line Plus drive system. A 120mm suspension fork soaks up rocks, roots, and potholes on your ride, while 9-speed Shimano CUES is durable and reliable for wherever you roll.- Its AUTO mode adaptive motor support recognizes speed reductions and adjusts assistance automatically
- The 120mm suspension keeps your ride feeling smooth through bumps, roots, and rough stuff
- Marlin+ is easy to use with simple controls and intuitive support, so you can focus on the ride ahead, not complicated remotes
- Trail-savvy geometry keeps handling easy and confident from singletrack to city streets
- Tons of rack and fender mounts let you customize your ride for the trail or taking on daily commutes
Smooth, quiet support
Bosch Active Line Plus mid-power motor doles out a smooth 50Nm of torque. Its controlled acceleration, low pedal resistance, and super quiet operation give you a natural-feeling, unobtrusive ride.
Clean, simple controls
The 2-in-1 remote and display provides all the information and control youll need in a compact, full-color handlebar controller with intuitive contols.
System safety taken seriously
Trek sets its e-bike safety standards high with UL certified e-systems, sophisticated battery management failsafe systems and battery cells from tier 1 suppliers.
Ride more and smile more with PowerMore
Wanna ride farther? Add PowerMore to your Marlin+. This booster battery extends your range, so you get more supported ride time.
A better way to produce aluminum
Starting in 2024, we began removing high-emission aluminum from our manufacturing and replacing it with low-emission aluminum made with renewable energy. By October 2025, nearly every alloy bike we make - this one included - had made the switch, driving a major drop in our footprint.
Shimano CUES
Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano’s new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette, and chainrings.
| Frame | Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle |
| Fork | SR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel |
| Tire | Bontrager Montrose comp, Tubeless Ready, wire bead, 30 tpi, 29x2.40 |
| Hub Front | Shimano TC500 alloy, centerlock, 110x15mm thru axle |
| Hub Rear | Shimano TC500 alloy, centerlock, 148x12mm thru axle |
| Rim | Bontrager Connection, double-wall, 32-hole, 20mm width, Presta valve |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
| Shifter | Shimano U4000, 9 speed |
| Rear Derailleur | Shimano CUES U4000 |
| Crank | FSA CK-220, 165mm length |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9 speed |
| Chain | Shimano LG500, 9/10/11 speed |
| Chainring | FSA, 32T, steel |
| Brake Rotor | Tektro, centerlock, 203mm |
| Pedal | VP-536 nylon platform |
| Saddle | Bontrager Verse P3, steel rails |
| Seatpost | TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length |
| Handlebar | Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width |
| Stem | Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length |
| Headset | Semi-integrated, loose ball bearing, 1-1/8 top, 1.5 bottom |
| Grips | Trek Line Comp, nylon lock-on |
| Battery | Bosch CompactTube 400Wh |
| Motor | Bosch Active Line Plus |
| Charger | Bosch standard 2A, 110V, smart system |
Geometry Chart
| B B Drop | 6 |
| B B Height | 31.8 |
| Chainstay Length | 48.5 |
| Eff Seat Tube Angle | 74.0° |
| Eff Top Tube | 68.2 |
| Frame Reach | 49.5 |
| Frame Size Letter | XL |
| Frame Stack | 65.3 |
| Head Angle | 66.5° |
| Head Tube Length | 13.5 |
| Offset | 4.2 |
| Seat Tube | 50 |
| Seat Tube Angle | 73.8° |
| Standover | 77.5 |
| Trail | 11.4 |
| Wheelbase | 128.4 |
| Wheel Size | 29" |
